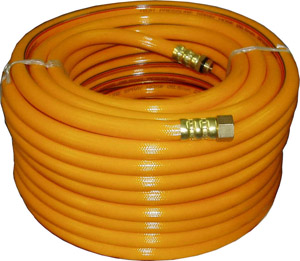

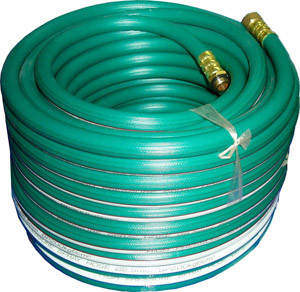

PVC High Pressure Hose
Feature:
1).Made of toughness PVC materials and high tensile knitted polyester fiber as its reinforcement
2).Good flexibility and resistance to abrasion and corrosion
3).Temperature range:-5℃ to 65℃
Applications:
﹣General industrial applications
﹣Compressed air in garages and service stations
﹣Factory air lines,pesticide spraying
﹣Automation machinery and pneumatic lines etc
Parameter Table:
Diamension
|
W.P
|
B.P
|
Length
|
Weight
|
Inch
|
I.D(mm)
|
O.D(mm)
|
MPA
|
MPA
|
M
|
Kg/Roll
|
1/4"
|
6
|
12
|
3.0
|
10
|
100
|
11.1
|
5/16"
|
8
|
15
|
3.0
|
10
|
100
|
13.5
|
8.5
|
15
|
2.5
|
8
|
100
|
12.7
|
3/8"
|
10
|
17
|
2.0
|
6
|
100
|
14.1
|
|
