Product Class : Hose and Coupling and Flange
Product Name : Spiral Reinforced PVC Dust Suction Hose
 Enlarge Image                   Back

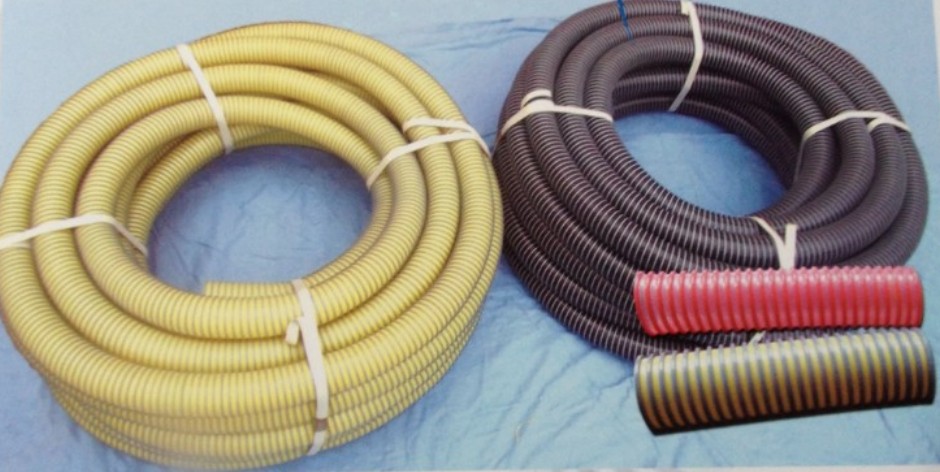

Spiral Reinforced PVC Dust Suction Hose
Material: Tube Wall is Soft PVC, Spiral is made from Rigid PVC.

Features:

1: good softness, medium weight, highly flexible and compressible;

2: PVC strengthened with high tensile steel spring wire with small bending radius;

3: medium pressure resistance, corrosion resistance, excellent resistance to chemical resistance, hydrolysis resistance, acid-alkaline resistant;

4: excellent stability and flexibility under performance.

Temperature range: -20 to +80



Application:
It is widely used especially for wood working machinery, painting equipment, carton processing equipment, dust collection for band saw, drill press and scroll saw, etc.

Also for low and medium pressure central HVAC systems and ventilation systems, industrial air movement and fume control applications, extraction of chemical fumes, transfer of hot and cold air, ventilation and exhaust for factory equipment, engine construction.

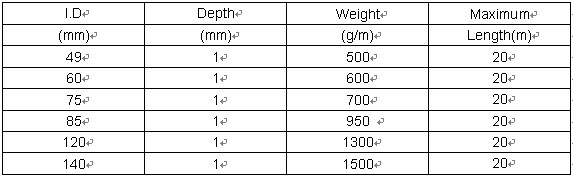

Parameter Table
