Air Cooled Deutz Diesel Water Pump
P & H Series pumps are interchangeable parts and dimensions with many OEM self-priming non-clog trash pumps (including entire rotating assemblies),it designed for economical & trouble-free operation in handling solids-laden liquids and slurries, it handle up to 76.2mm spherical solids.

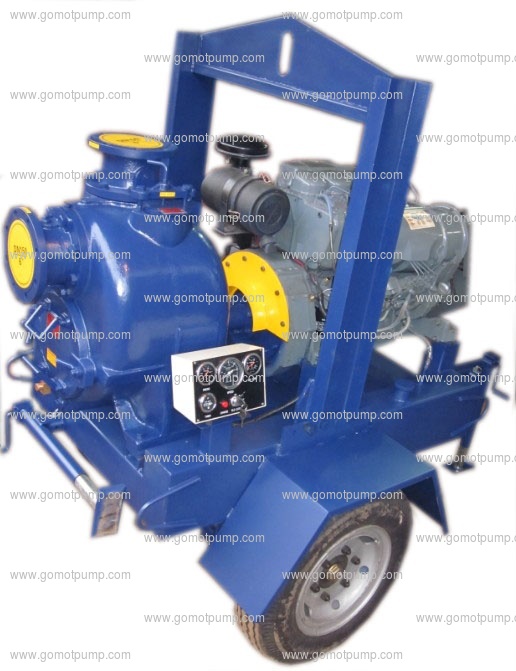

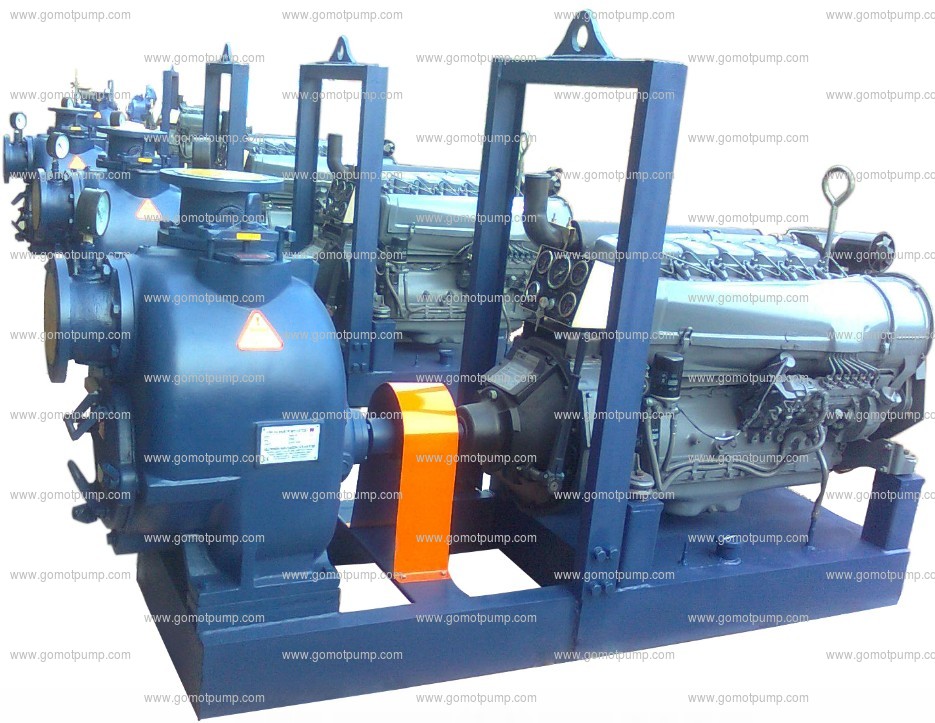

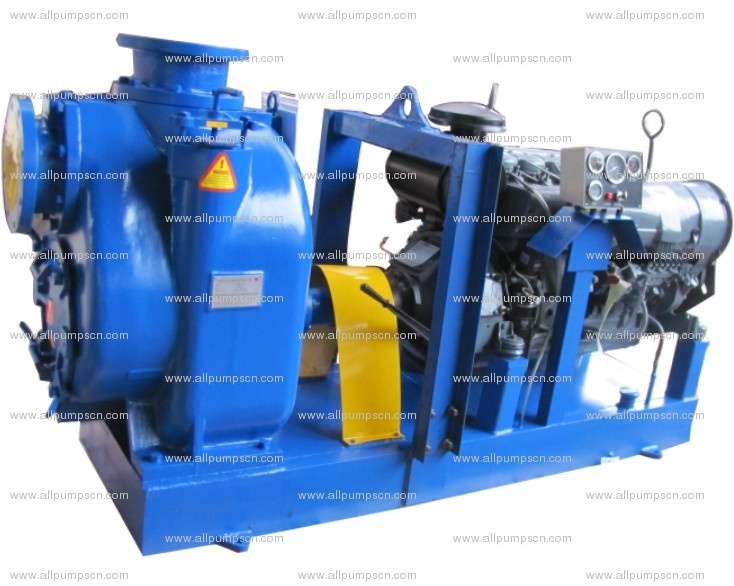

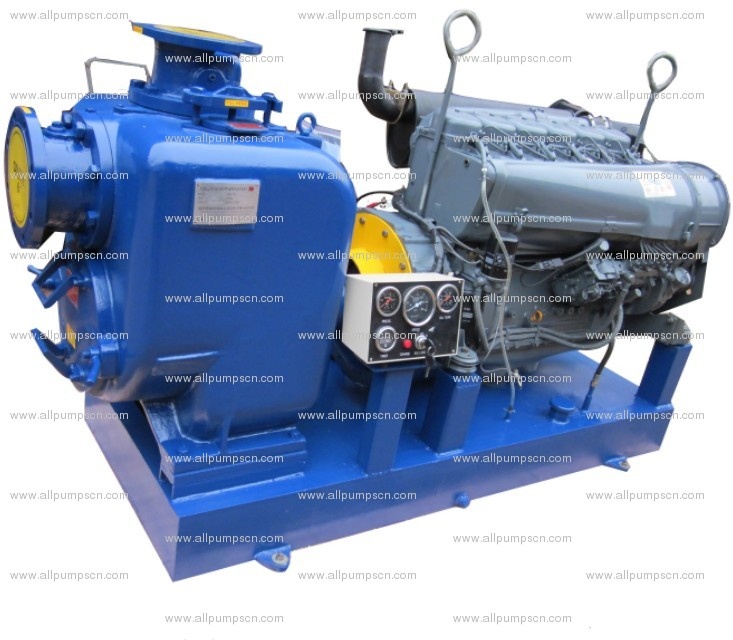

Typical mounting configurations are Engine Driven for Skid or Trailer Mounted packages and
Frame Mounted Electric Driven. Pumps also are available in a variety of different metallurgies.
Haihe Standard Self-Priming Series pumps provide solutions to your solids handling or clear liquid service needs.
Additional Features Include:
♦ Replaceable Wear Plate
♦ Heavy Duty Suction Flapper
♦ Removable Inspection Cover allows Clean-out, Impeller, Seal and Flapper without disturbing Piping
♦ Semi-Opened Trash Handling Impeller
♦ Pressure Relief Valve
♦ O-Ring Sealed
♦ External, Shimless Impeller/Wear plate Clearance Adjustment
♦ Back Pull-out Cartridge-type Rotating Assembly for Ease of Maintenance
♦ Cartridge Type Mechanical Seal for Ease of Maintenance
Industries Served
a) ♦ Construction ♦ Industrial ♦ Municipal ♦ Agricultural ♦ Mining ♦ Dewatering
b) ♦ Industrial Waste ♦ Sewage ♦ Oil Field ♦ Petrochemical ♦ Paper Mills
c) ♦ Processing
Mounting Configuration
1) Frame Mounted
2) Base Mounted Electric Driven
3) Engine Driven SAE Mounted
4) Engine Driven Skid or Trailer Packages
5) Horizontal or Vertical V-Belt Driven
Technical Data
MODEL
|
R.P.M.
R/MIN
|
FLOW
m3/H
|
TOTAL
HEAD
m
|
MOTOR
HP
|
NET
WEIGHT
kg
|
GROSS
WEIGHT
kg
|
MAX
SOLIDS
mm
|
P-2
|
1150-2900
|
46
|
36
|
1 – 10 HP
|
100
|
120
|
44.45
|
P-3
|
650-2150
|
107
|
35
|
1 – 20 HP
|
183
|
205
|
63.5
|
P-4
|
650-1950
|
163
|
36
|
1 – 30 HP
|
290
|
310
|
76.2
|
P-6
|
650-1550
|
330
|
33
|
2 – 40 HP
|
395
|
420
|
76.2
|
P-8
|
650-1350
|
600
|
34
|
7.5 – 75 HP
|
720
|
750
|
76.2
|
P-10
|
650-1450
|
775
|
40
|
10 – 100 HP
|
760
|
800
|
76.2
|
P-12
|
650-1250
|
1275
|
42
|
20 – 125 HP
|
1260
|
1300
|
76.2
|
H-3
|
850-2150
|
85
|
62
|
1.5 – 25 HP
|
205
|
225
|
20.63
|
H-4
|
850-2150
|
148
|
58
|
3 – 40 HP
|
320
|
350
|
28.57
|
H-6
|
850-1950
|
308
|
57
|
5 – 75 HP
|
415
|
450
|
31.75
|
Structure & Cutting Drawing
